X26

GNSS/INS Combined Navigation System

X26 is a high-precision navigation unit based on self-developed GNSS chips. It has high-precision IMU which is compliant with functional safety ASIL B standards, and various interfaces. It is capble of tackling with harsh environments such as satellite signal interference or loss, providing stable, continuous, reliable high-precision position and atittudes.










Specifications and Guides

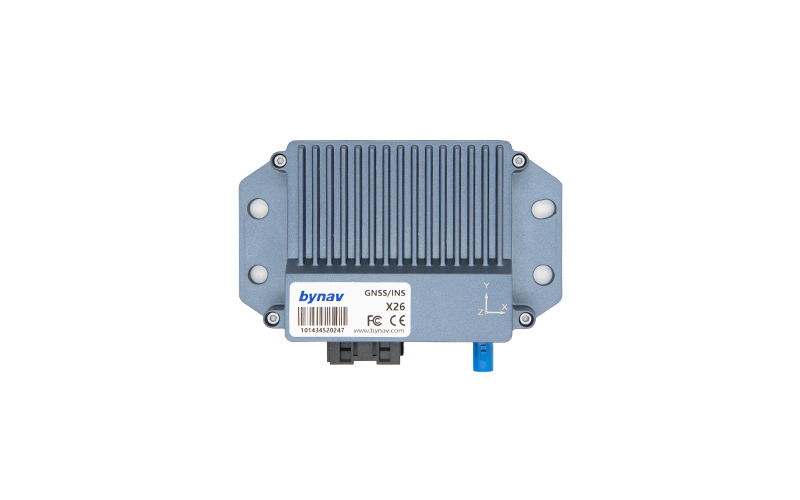

GNSS/INS Positioning Box

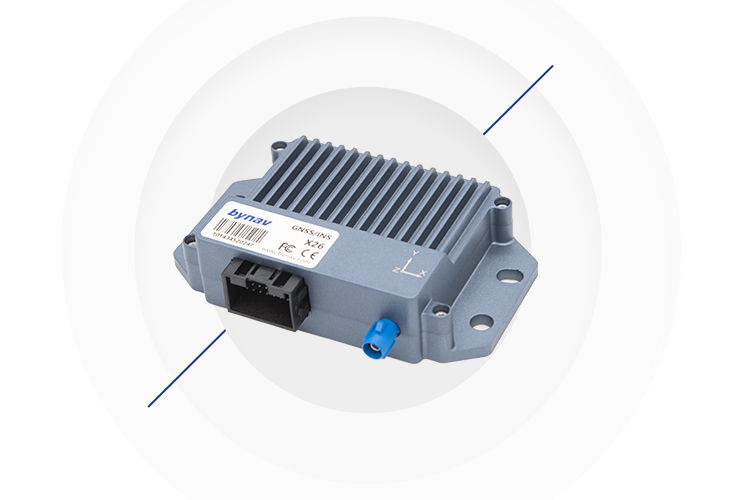

X26 features full-temperature calibrated IMU and deeply-coupled combined navigation algorithm. It is capable of providing reliable and accurate position in harsh environment such as satellite signal interference or loss.
With modeling based on the characteristics of autos and other vehicles, and optimation for relevent applications, X26 can produce high performance in various challenging scenarios including underground parking lots, tunnels, overpasses, urban streets, ports and so on.

Full-constellation and Full-frequency

GNSS/INS Deeply-coupled Navigation System

Features

Features

• Deeply-coupled Combined Navigation Engine

The built-in high-precision IMU has been calibrated at full temperature, which improves key indicators like bias stability and dead reckoning accuracy. Aided by IMU, the deeply-coupled combined navigation algorithm can lift the quality of GNSS signal observation and increase the positioning accuracy by twice to 5 times than loosely-coupled algorithm.



• High-precision GNSS Positioning Engine

Bynav REAL (Ransac Enhanced Advanced Location) GNSS positioning engine adopted has integrity monitoring and partial ambiguity solution algorithm to deal with various harsh environments such as satellite signal interference and outage and provide reliable and stable position in certain times.



• Scalability

Multiple interfaces such as automotive ethernet and CAN/CAN FD are viable, also PPS and gPTP are supported to interact and work with other sensors like LIDAR and SLAM.



• Scenario Optimization

Optimized for in-vehicle applications: based on vehicle characteristics modeling, it can handle the most challenging environments such as urban road canyon and satellite signal interference, providing continuous, stable and reliable real-time high-precision position.

Highlights

Highlights

Deeply-coupled GNSS/INS Navigation Engine

High-precision Functional Safety ASIL B IMU

• Exclusive REAL RTK Positioning Engine

• Full-constellation & Multi-frequency RTK Solution

• Modern Systems such as BDS-3 & Galileo Supported

• GNSS/IMU Raw Data Output and Post-processing Supported

Multiple Interfaces

• Lower Delay of Solution

Performance
Model X26
Signal tracking

GPS
GLONASS
BDS-2
BDS-3
QZSS
Galileo
NavIC

L1 C/A, L2, L5
G1, G2
B1I, B2I, B3I
B1I ,B1C, B2a, B2b, B3I
L1 C/A, L2, L5
E1, E5b, E5a
L5

Single point positioning

Horizontal
Vertical

1.5 m (RMS)

2.5 m (RMS)

RTK positioning Horizontal
Vertical

1 cm + 1 ppm (RMS)
1.5 cm + 1 ppm (RMS)

Time to first fix Cold start
Hot start
≤ 35 s
≤ 7 s
Max data rate GNSS measurement
RTK position
INS position/attitudes
IMU raw data
5 Hz
5 Hz
100 Hz
100 Hz
Measurement Carrier phase ≤1 mm (RMS)
Pseudorange L1C/A, L2, G1, G2 ≤0.12 m (RMS)
Others ≤0.06 m (RMS)
Timing 20 ns (RMS)
Velocity 0.03 m/s (RMS)

Model

Outage duration

Positioning mode

Positioning /m(RMS)

Velocity /m/s(RMS)

Attitudes/°(RMS)



Horizontal

Vertical

Horizontal

Vertical

Roll

Pitch

Azimuth

X26

0s

RTK

0.012

0.02

0.017

0.013

0.017

0.017

0.08

Post-processing

0.01

0.02

0.014

0.012

0.007

0.007

0.024

10s

RTK

0.21

0.13

0.054

0.024

0.031

0.031

0.101

Post-processing

0.012

0.02

0.018

0.016

0.008

0.008

0.027

Model

X26

Gyroscope

Range

±300 °/s

Rate Bias Repeatability

0.5 °/s

Rate Bias Instability

1.8 °/h (XZ)
1.4 °/h (Y)

Angular Random Walk

0.09 °/√h (XY)
0.10 °/√h (Z)

Accelerometer

Range

±6 g

Rate Bias Repeatability

20 mg

Rate Bias Instability

15 μg

Velocity Random Walk

0.035 m/s/√h

Model

X26
Size 118×71×29 mm
Weight 165±30 g

Optimizing Performance for Every Need

Applications

X26 can provide reliable continuous centimeter-level real-time positioning services (including speed, attitude and other information), and can be used in autonomous driving, mapping and many other fields.

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

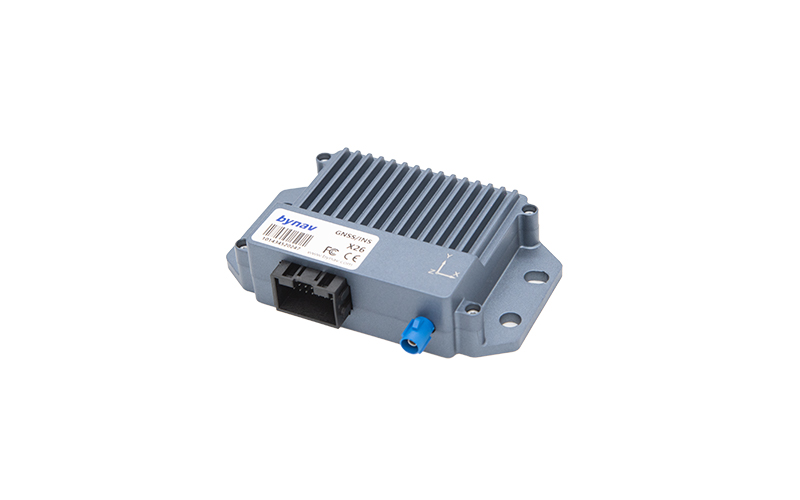

GNSS/INS Positioning Box

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
