Gmouse

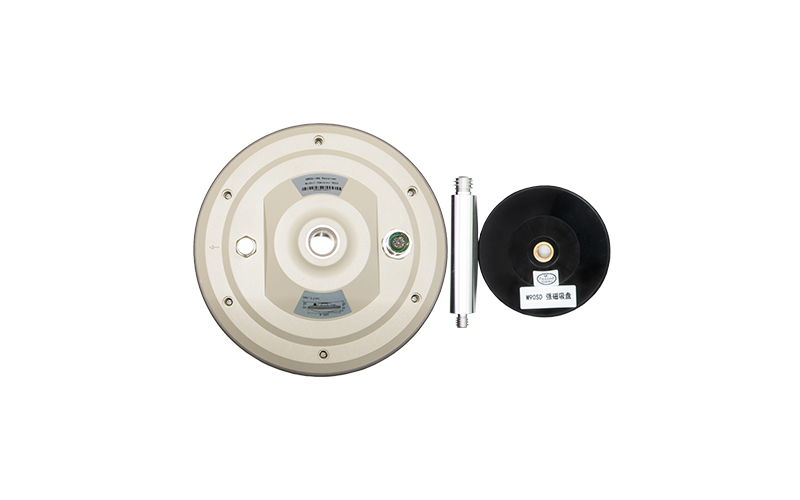

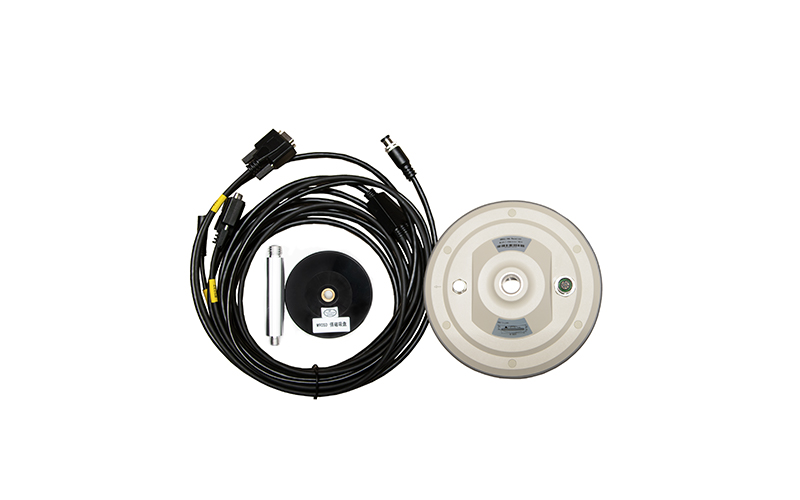

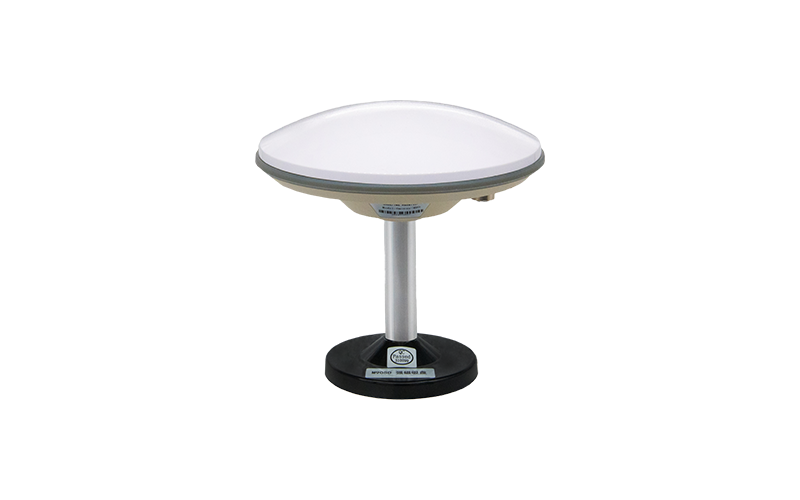

GNSS/INS High-precision Module-integrated RTK Antenna

With the M2 series module built inside, Gmouse features high-performance RTK, deeply-coupled combined navigation algorithms and support for L-Band PPP.






Specifications and Guides

Module-integrated RTK Antenna

Gmouse-M2 series consist of Gmouse-M20, Gmouse-M21 and Gmouse-M22 which are designed as an enhanced unit for agriculture, industrial machinery, automotive positioning, etc. It can be used to boost average accuracy of the original equipments to centimeter level. With the M2 series module built inside, Gmouse is capable of providing continuous, real-time and credible high-precision position and attitudes in harsh environments where satellite signals are interfered or blocked.



Concise and Easy-to-use High-precision Integrated Antenna

Features

Features

• Deeply-coupled GNSS/INS combined navigation engine

• Built-in high-precision positioning board and IMU

• Specialized multi-vector RTK positioning engine

• Full-constellation and full-frequency

• Modern signals of BDS-3 and Galileo supported

• GNSS and IMU raw data available for post-process

• Lower positioning solution delay

Performance

Gmouse

Horizontal positioning accuracy1

Single point

1.5 m(RMS)

RTK

1 cm + 1 ppm(RMS)

Vertical positioning accuracy1

Single point

2.5 m(RMS)

RTK

1.5 cm + 1 ppm(RMS)

Signal tracking

GPS

L1 C/A、L1C、L2、L5

GLONASS

G1、G2

BDS

B1I、B2I、B3I、B1C*、B2a、B2b

Galileo

E1、E5b、E5a、E6*

QZSS

L1 C/A、L2、L5、L6*(CLAS)

L-Band* Sensitivity:-133 dBm
FEC bit:10-5

Observation accuracy

Carrier phase

≤1 mm(RMS)

Psudorange ≤0.1 m(RMS)

Dynamic performance

Velocity

≤ 500 m/s

Acceleration

≤ 4 g

DR accuracy2 Gmouse-M21 0.8%
Gmouse-M22 0.2%

Max data rate

GNSS results3

M20:10 Hz

M21/M22:5 Hz

INS results

M21/M22:100 Hz

Timing accuracy4

20 ns(RMS)

Velocity accuracy

0.03 m/s(RMS)

Anti-jamming

65 dBc(ISR)
Multitone with no less than 6 pulses;
Narrowband whose band width is not less than 10% of the signal's
Fast sweep interference;

* Optional or designated firmware required

Note 1:Typical value. The performance is affected by GNSS systematic characteristics, geometric distribution of satellites, length of baseline, multipath and other interference.

Note 2:LAND mode is selected and input of speedometer is effective.

Note 3:M21 and M22 support data rate of up to 10 Hz with combined navigation disabled.

Note 4:Optional, the bias of RF and antenna is not included.

Note 5:Typical value.

Model

Gmouse

Power consumption (Typ.)

550 mW

Model

Gmouse-M21

Gmouse-M22

Gyroscope

Range

±300 °/s

±300 °/s (XY)

±460 °/s (Z)

Bias over temperature

0.3 °/s

0.3 °/s (XY)

0.07 °/s (Z)

Angular random walk

0.15 °/h½ (X/Y)

0.2 °/h½ (Z)

0.5 °/h½  (XY)

0.08 °/h½ (Z)

Bias instability

5 °/h

5 °/h (XY)

1 °/h (Z)

Scale factor error

4‰

4‰ (XY)

2‰ (Z)

Cross-coupling error 1.7‰ (0.1°) 1.7‰ (0.1°)

Accelerometer



Range

±16 g

±16 g

Bias over temperature

5 mg

5 mg
Velocity random walk 0.3 m/s/h½ 0.3 m/s/h½

Bias instability

50 μg

50 μg

Scale factor error

2‰

2‰
Cross-coupling error 0.9‰ (0.05°) 0.9‰ (0.05°)

Optimizing Performance for Every Need

Applications

Our receivers can be widely used in surveying, mapping, autonomous driving, unmanned systems (UAVs, UAS etc.), driver license testing, digital construction, precision agriculture, deformation monitoring, industrial automation control and many other fields.

  • Precision Agriculture
    Precision Agriculture
  • Digital Construction
    Digital Construction
    Digital Construction
  • UGV
    UGV
    UGV
  • USV
    USV
    USV
  • UAV
    UAV
    UAV

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

Module-integrated RTK Antenna

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
