Alice GNSS SoC

High Precision GNSS SoC

Check Other Models and Specifications

Alice GNSS SoC

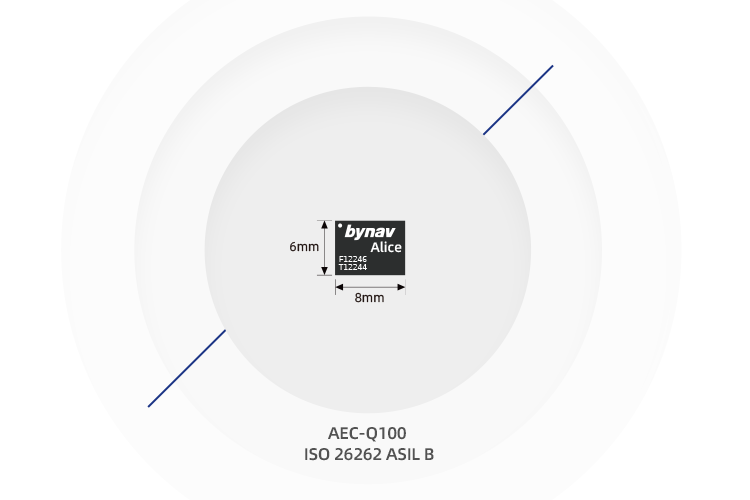

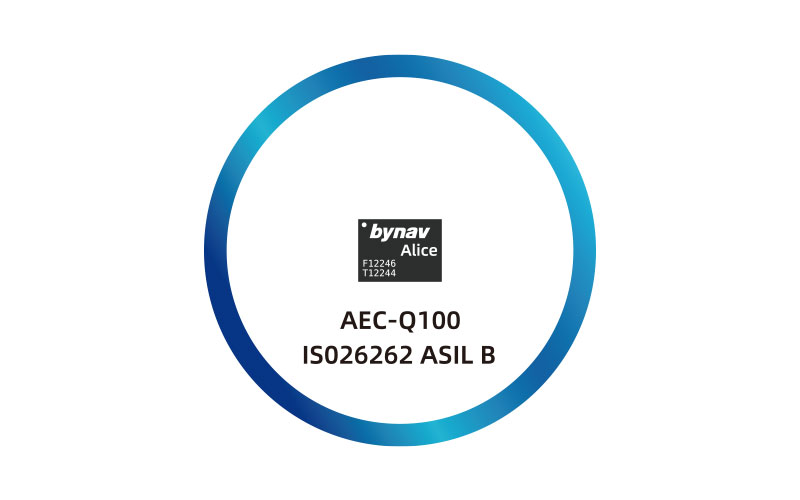

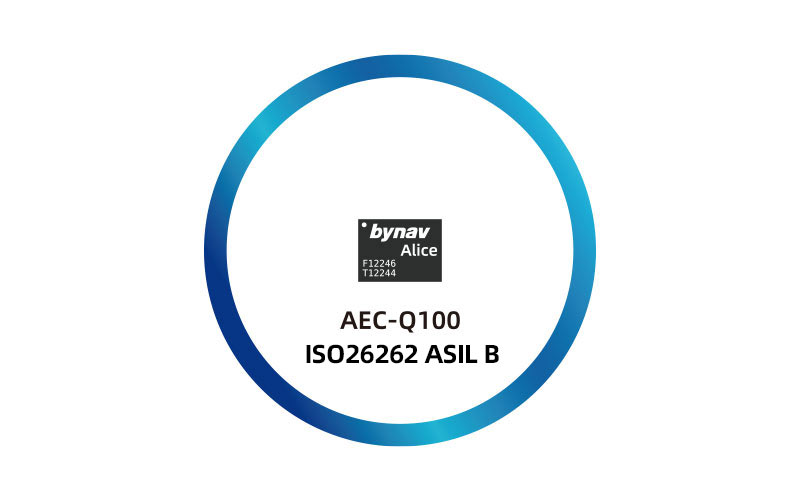

The SoC is based on ISO26262 ASIL B functional safety requirements and uses automotive grade process of 22nm with size 6×8mm and package of LGA. Supports full constellations and full frequencies with L-BAND and CLAS, and has 1507 channels(including 750 FuSa channels). The SoC has built-in REAL RTK positioning engine and DIST deep-coupled GNSS/INS navigation engine. SAIF(Smart Advanced Interference defense), the high-performance multiple interference suppresion technoloy, is also built in and capable of handling different interferences such as single-frequency, multitone, sweeping, pulse, narrowband with interference-signal ratio of 65 dB.

Full constellations and full frequencies

1507 channels (including 750 FuSa channels)

Core Technology

Core Technology

1)Vector tracking loop. Achieve better performance in anti-jamming and anti-spoofing with multi-satellite multi-frequency joint tracking.
2)Multi-correlator based multipath suppression technique. Multi-correlator based parallel correlation methods suppress multipath effect where GNSS signal is reflected off buildings in urban environment, and improve the quality of GNSS observation data.
3)Deeply integrated navigation. Support external input inertial navigation information to assist signal tracking, and provide more robust and accurate observation data in harsh environment.
4)Signal quality monitoring. Monitor real-time tracking loop performance, output the accuracy of GNSS observation.

Performance
Channel Number 1507(with 750 Fusa Channel)
Receivable Signals BDS
GLO
QZSS
SBAS
GPS
GAL
IRNSS
L-band
B1I/B2I/B3I/B1C/B2a/B2b(PPP)
G1/G2
L1CA /L2/L5/L6(CLAS)
L1CA
L1CA/L1C/L2/L5
E1/E5a/E5b/E6
L5




Applications

Being widely used in intelligent driving, driver license testing, surveying and mapping, engineering machinery, unmanned systems (UAVs, UAS etc.) and many other fields.


  • Intelligent Driving
    Intelligent Driving
  • Driver License Testing
    Driver License Testing
    Driver License Testing
  • Surveying And Mapping
    Surveying And Mapping
    Surveying And Mapping
  • Engineering Machinery
    Engineering Machinery
    Engineering Machinery
  • UAV
    UAV
    UAV
