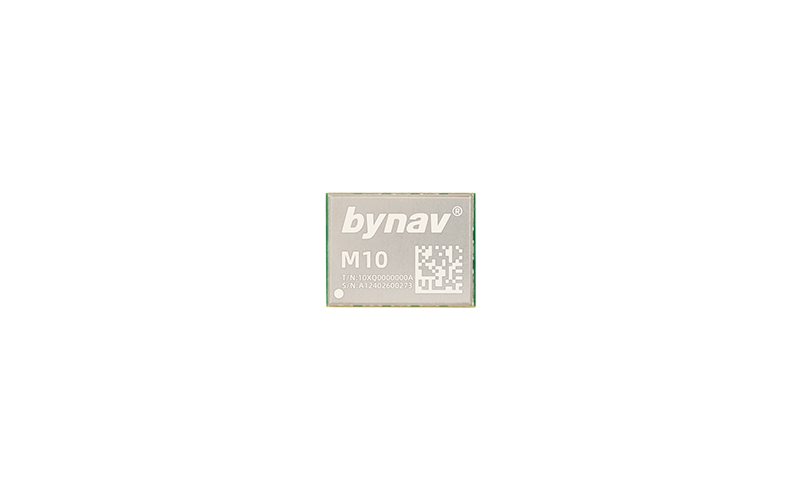

M10

Compact GNSS High-precision Positioning Module

Based on Alice, the automotive-grade GNSS SoC from Bynav, M10 features high-precision measurement engine, navigation engine and functional safety engine and are capable of providnig consistent, real-time and reliable high-precision position in hash environments of signal jamming and GNSS denial, etc.



Specifications and Guides

Compact GNSS Module

It is capable of dealing with harsh environments where satellite signals are interfered or blocked and providing continuous, real-time and reliable high-precision position. Featuring high integration, high performance, low power consumption and small size, the module can be applied to automatic driving, advanced driver assistance, lane-level navigation, drones, intelligent robots, precision agriculture, surveying and mapping, etc.

Small Size, Standardized Package, Better Compatibility

Watch the video
Features

Features

• Based on Alice, the high-precision positioning SoC

• Full-constellation and multi-frequency

• Support for modernized signals of BDS-3 and Galileo

• Lower RTK solution delay

• Better performance in handling multi-path, interference and GNSS denial

• Small size and standardized package



Performance

Model

M10

Horizontal Positioning Accuracy

Single Point

1.5 m (RMS)

RTK

1 cm + 1 ppm (RMS)

Vertical Positioning Accuracy

Single Point

2.5 m (RMS)

RTK

1.5 cm + 1 ppm (RMS)

Tracking

BDS-2

B1I, B2I, B3I

BDS-3 B1I, B1C, B3I, B2a, B2b (PPP)

GPS

L1 C/A, L1C, L2, L5

GLO

G1, G2

GAL

E1, E5a, E5b, E6

QZSS

L1 C/A, L1C, L2, L5,  L6 (CLAS)

NavIC

L5

SBAS*

L1 C/A

Observation Accuracy Carrier Phase ≤1 mm (RMS)
Pseudo-range ≤ 0.1 m (RMS)

First Positioning Time

Cold start

≤ 30 s

Hot start

≤ 5 s

Max Transfer Rate

GNSS Observation

10 Hz

GNSS Position Results*

10 Hz

RTK Initialization

≤ 5 s

Re-acqusition Time

≤ 1s

Timing Accuracy

≤20 ns (RMS)

Velocity Accuracy

0.03m/s (RMS)

RTK Solution Delay

≤ 50 ms

Mechanical and Electrical (M20)

Size  (mm)

17.0×22.0×2.75

Weight (g)

2g

Power Consumption

500 mW

Operating Temperature*

-40°C ~ +85°C

Storage Temperature*

-40°C ~ +105°C

Humidity

 95% Non-condensing

IATF 16949*

ISO 26262 ASIL B*

AEC-Q104*

RoHS

* Optional or refer to datasheet for more information

Model

M10

Power Consumption

450 mW

Size

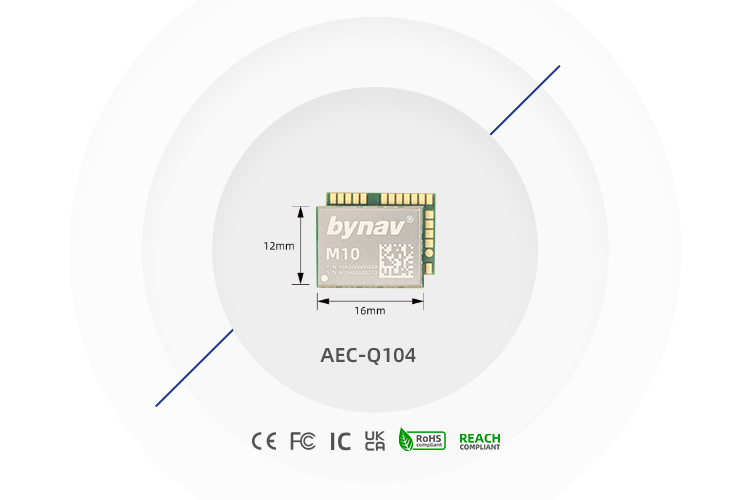

16.0×12.0×1.8 mm

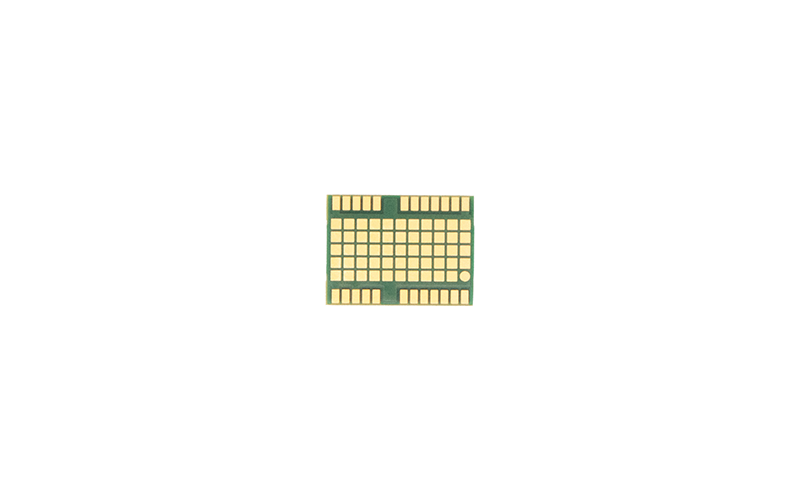

Package

24-Pin LGA

Temperature

Working:-40~+85 ℃(AEC-Q104 Grade 3)

Storage:-55~+150 ℃

Optimizing Performance for Every Need

Applications

It can provide real-time, continuous and reliable centimeter-level position with results of velocity and attitude. Also, it can be applied to different fields such as autonomous driving, surveying and mapping.

  • Automatic Driving
    Automatic Driving
  • Deformation Monitoring
    Deformation Monitoring
    Deformation Monitoring
  • UAV
    UAV
    UAV
  • Surveying and Mapping
    Surveying and Mapping
    Surveying and Mapping
  • UGV
    UGV
    UGV

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

Compact GNSS  Module

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
